Katool KT-4H110 11,000lbs 4 Post Lift W/ 1-Year Warranty
Katool KT-4H110 11,000lbs 4 Post Lift W/ 1-Year Warranty
SKU::KT-4H110
✓ No Sales Tax
✓ Typically Ships in 3-7 Business days
✓ Free Warehouse Pickup Options
Need Help? Call 877-708-0160
Couldn't load pickup availability
Description

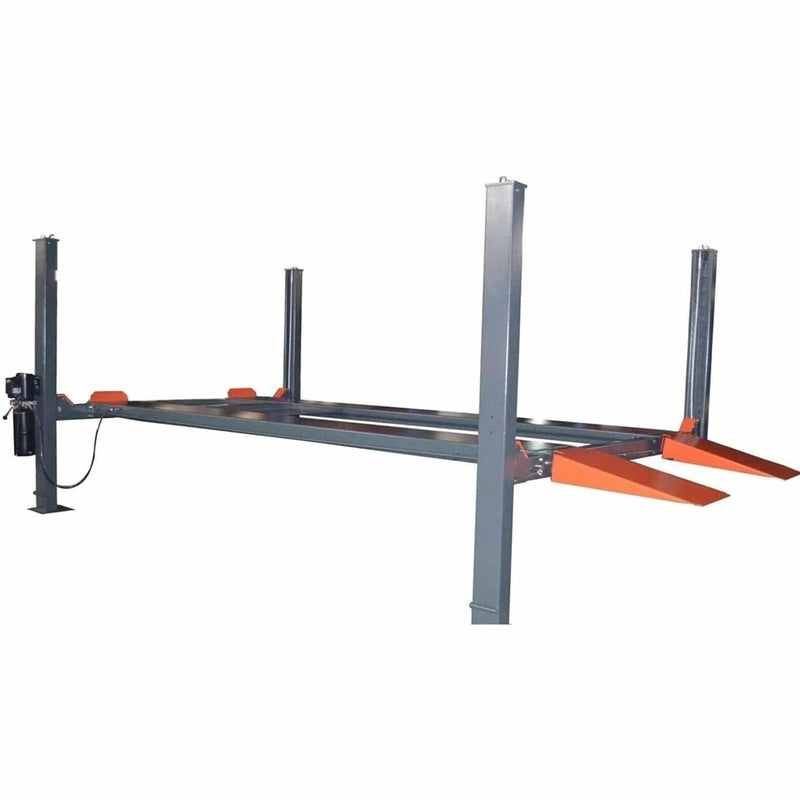

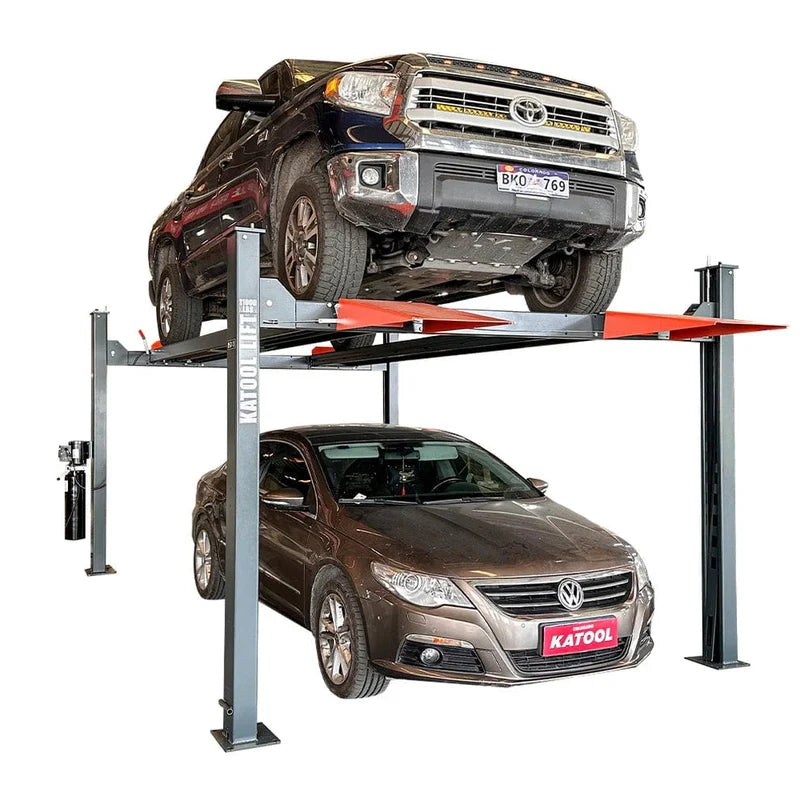

This Four-Post Vehicle Lift by Katool is the ultimate heavy-duty solution for your shop or even home garage, this lift has an impressive 11,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards with 115% dynamic loading capacity and 150% static loading capacity testing. This lift combines safety, reliability, and convenience for all your vehicle lifting needs.

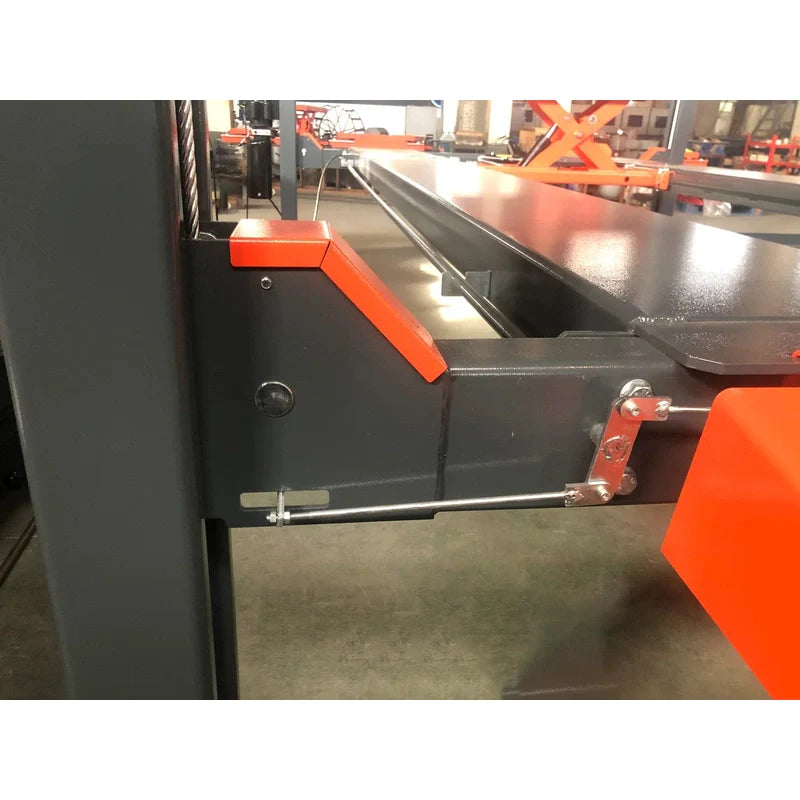

With its single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H110 prioritizes secure lifting. The non-skid diamond platforms and adjustable safety lock ladders ensure stability and adaptability for various vehicle types. Additionally, the lift’s power-side column offers flexible installation options for better workspace optimization.

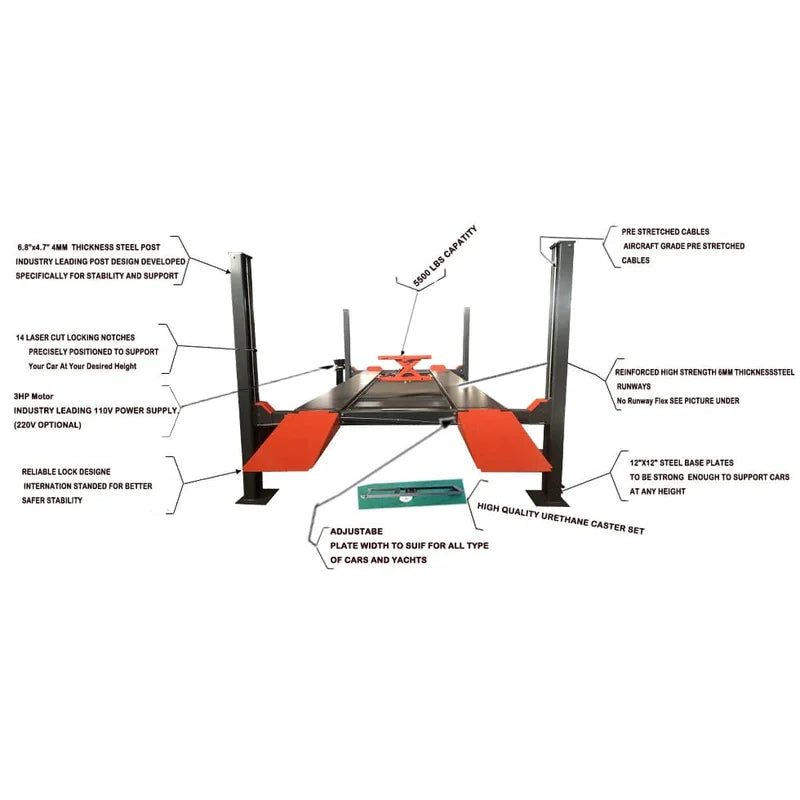

Key Features
- 11,000 lbs Lifting Capacity: Handles heavy-duty vehicles with ease.
- CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

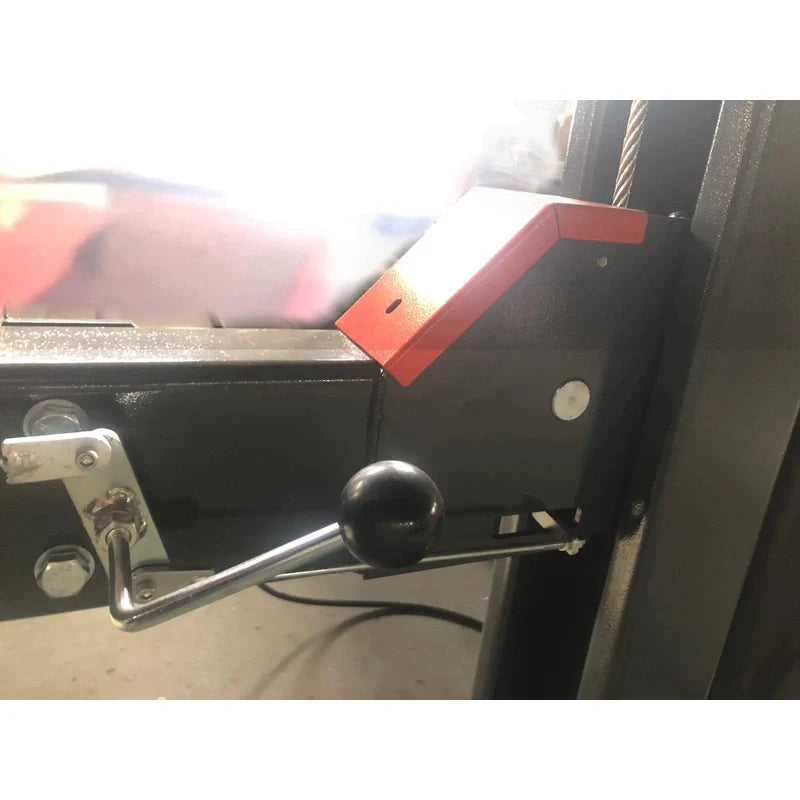

- Single-Point Manual Safety Lock Release: Ensures secure and controlled operations.

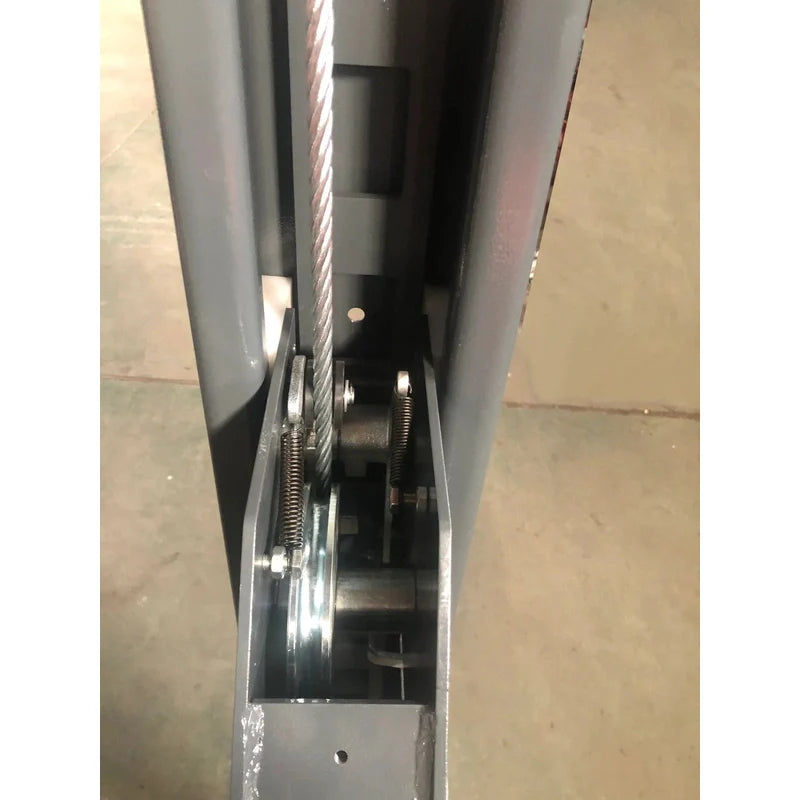

- Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for added security.
- Powerside Column: Flexible installation at either side, front, or rear.
- Non-Skid Diamond Platforms: Provides stability during lifting operations.

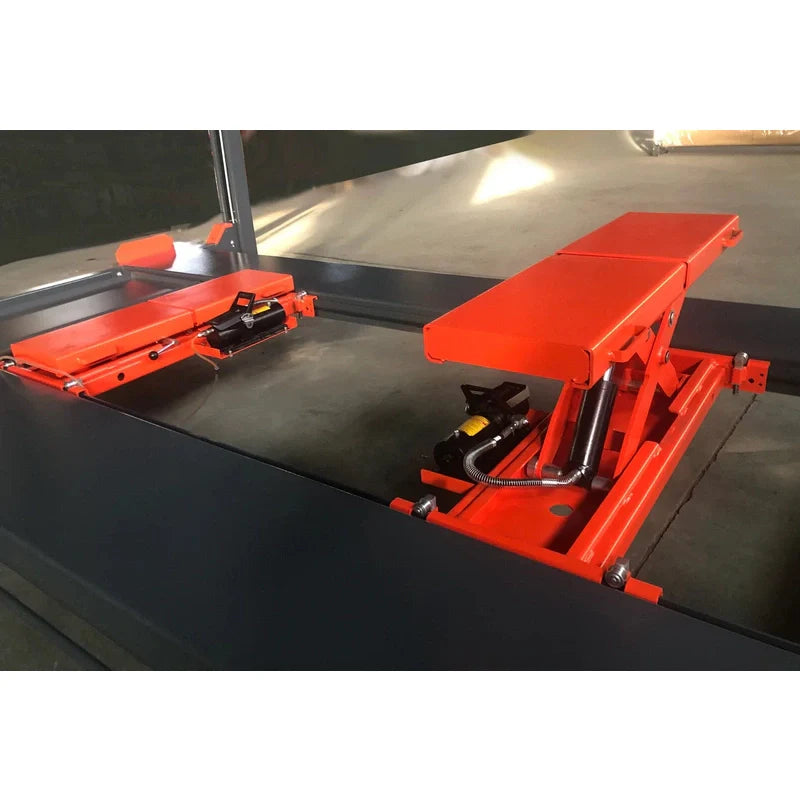

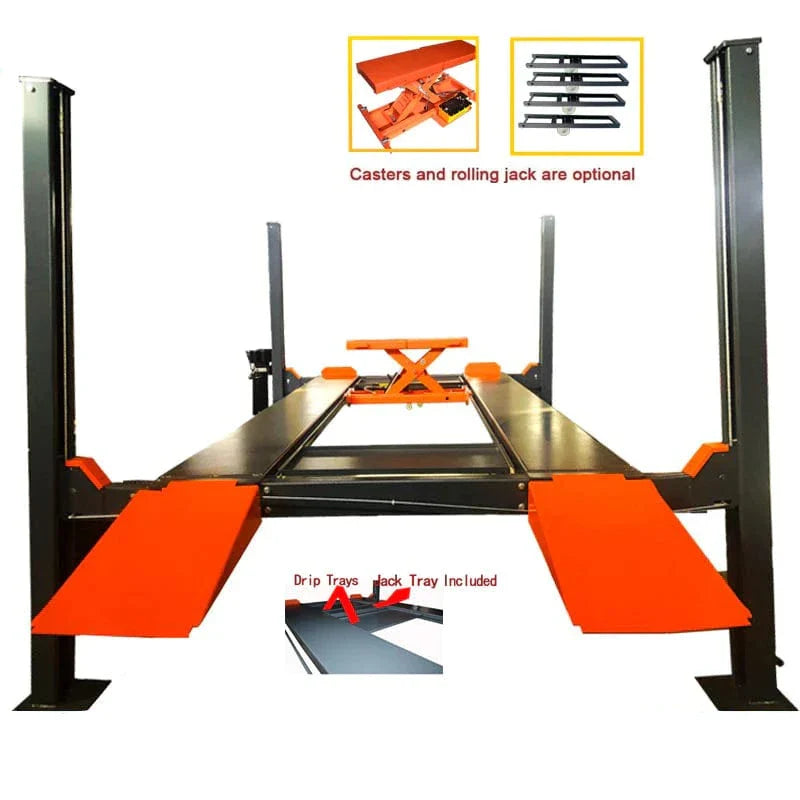

- Optional Add-Ons: Caster kit for mobility and rolling jacks for additional functionality (sold separately).
- Hydraulic System: Available in 110V/60HZ/1PH or optional 220V/60HZ/1PH for reliable and efficient performance.
- Comes with two drip trays and a jack tray for added convenience.

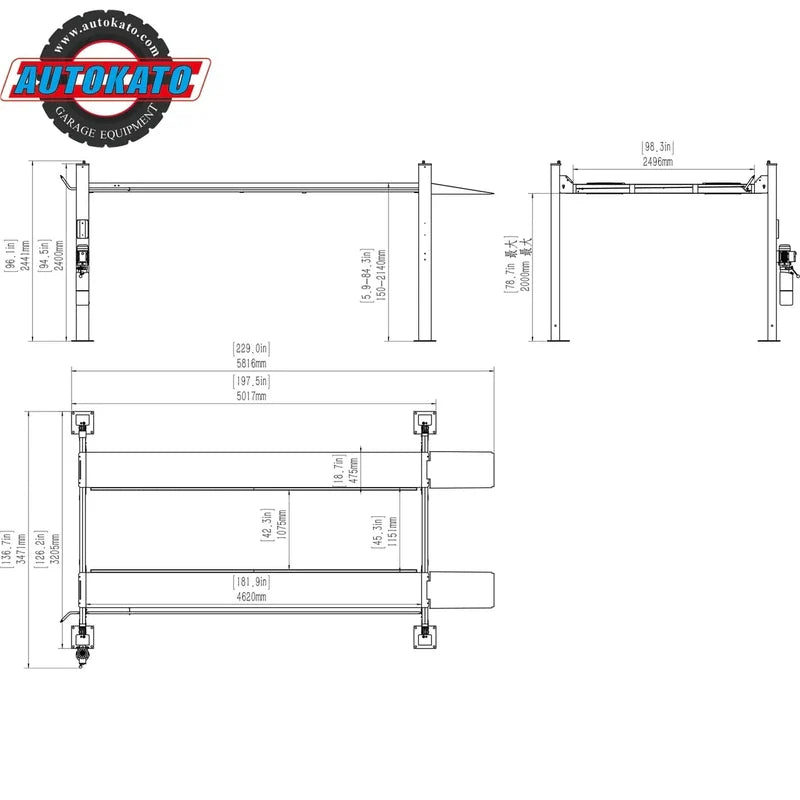

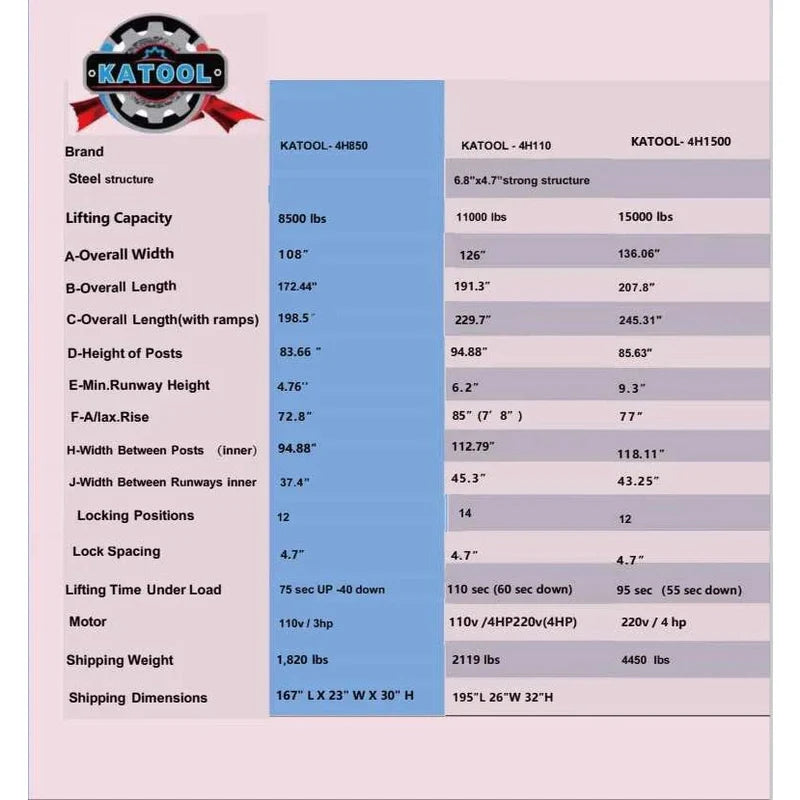

Specifications
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max. Lifting Height | 84.25" (2,140 mm) |
| Lifting Time | 83s Up / 40s Down |
| Height of Posts | 94.88" (2,410 mm) |
| Width Overall | 126" (3,200 mm) |
| Length Overall | 229.73" (5,835 mm, with ramps) |
| Inside Columns | 112.81" (2,865 mm) |
| Min. Runway Height | 6.2" (157 mm) |
| Motor | 110VAC/60HZ/1PH |
| Net Weight | 2,116 lbs (960 kg) |
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H110 User Manual. Click the link below to download:
View & Download User Manual (PDF)
Installation
Installing the KT-4H110 is straightforward, but proper concrete requirements are critical for safety. Ensure the concrete thickness is at least 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these specifications could lead to serious injury or equipment failure.
Warranty
The Katool KT-4H110 is backed by a 1-year limited warranty on all parts and product defects. Structural components for vehicle lifts include an additional 3-year warranty. Optional 2-year extended warranty plans are available for purchase.
Warranty Conditions:
- Claims must be within the warranty period and are non-transferable.
